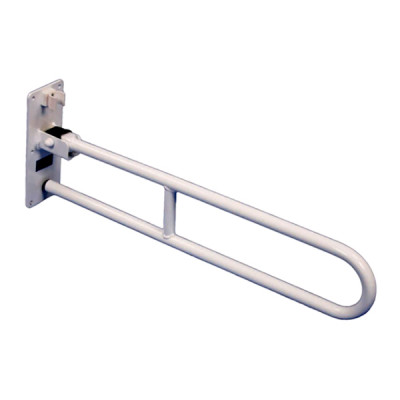

Solo Hinged Arm Support

The Solo Contract Hinged Arm Support is an excellent product for value and safety. It features a simple fold up/fold down mechanism for ease of use. The added feature of the optional support leg on the VY423 provides extra stability, especially where more downward pressure may be applied when in use. The leg assembly on the VY423 is height adjustable enabling the bathroom support arm to be set at various heights to suit most needs.

Ideal for use in the bathroom where safety is a concern
Height adjustable leg to suit the majority of users
Epoxy coated ensuring durability
Simple fold up/ fold down mechanism
750 mm long bar

Specifications

Code	VY424	VY423
Back Plate Size (mm))	100x260	260x100x5
Colour	White	White
Configuration (mm	Arm Support Leg	Arm Support Only Without Leg
Depth (mm)	760	165
Depth to Wall (mm)	760	755
Height (mm)	710-870	870
Length (Extended) (mm)	750	750
Length of Side Leg (mm)	555	n/a
Maximum Load (kg)	127	115
Maximum User Weight (kg)	127	115
Maximum User Weight (stones)	20	18
Net weight (kg)	3.1	3.2
Product Dimensions (mm)	710x100x760	870x100x165
Size	100x760x710-870
Tube Diameter (mm)	22.2	25
User Weight Limit (kg)	115	115
User Weight Limit (st)	18	18
Weight Limit (kg)	115	115
Width (mm))	100	100
